สถานที่กำเนิด:
ประเทศจีน
ชื่อแบรนด์:
OEM/ ODM/ YUEXIANKE
ได้รับการรับรอง:
UL/ CE/ ETL/ ROHS/ ANATEL
หมายเลขรุ่น:
GYTW
วิดีโอ

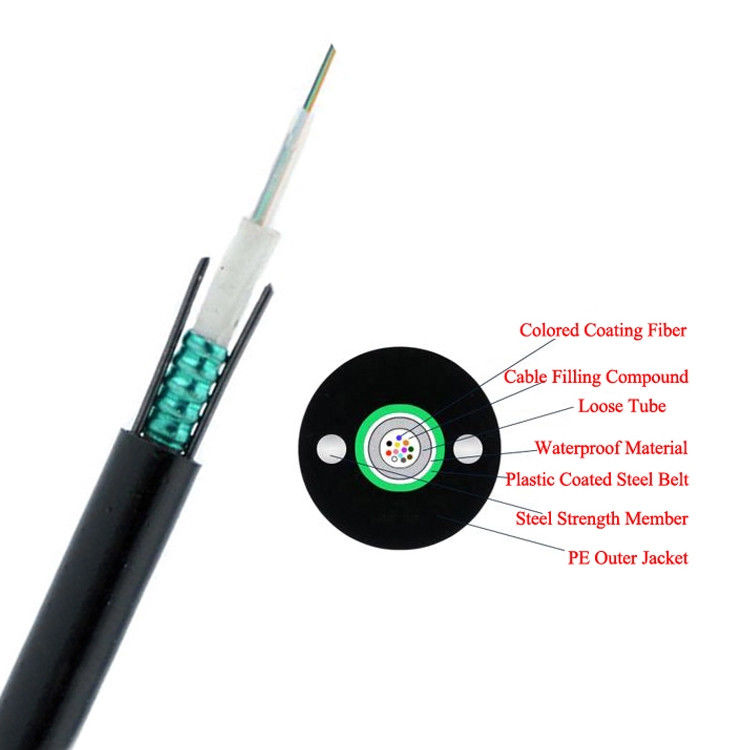

GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 2 - 48 Cores For Duct / Aerial
Specification
| Recommended laying methods | Aerial |
| Allpicable fields | Long distance communication and LAN |
| Properties | Water proofing layer providing strong water resistance peformance |
| Steel tape with PE outer enhancing anti-crush and tensile property of cable | |
| Structure characters | Water proofing layer between the steel tape and cable core |
| Double coated PE corrugated steel tape under PE sheath | |
| Parallel double steel wires as strengthen member | |
|
We can design oval cross section and non-metallic structure on requirement,e.g:GYXTEW,GYFXTW,GYFXTEW etc. |
Technicial Data
| Fiber range | Cable weight (kg/km) | Min.bending radius(mm) | Allowable tension(N) | Max.crus loading force(N/1000mm) | ||||
| Cableouter diameter | static | dynamic | short term | long term | short term | long term | ||
| 2-12 | 8.9 | 90 | 10times cable diameter | 20times cable diameter | 1500 | 600 | 1000 | 300 |
| 12-24 | 10.2 | 110 | ||||||
Features
